WES4 Series


Featuring new Gigabit Ethernet LAN ports, 400 Mbps of throughput is now achievable in long range point-to-point and point-to-multipoint applications. WES4 is ideal for constant streaming video, enabling a network of stand-alone video cameras to remotely connect to a disconnected internet source without the need for cost-prohibitive trenching.

Simply pair two or more WES4 radios (also available in preconfigured point-to-point kits) for long range connectivity. Since the WES4 firmware is configurable for mode type (Host or Client) and offers auto SSID selection, it is also possible to adapt it to connect to a 3rd party 802.11a/n/ac compliant access point. The WES4 units are wall or pole-mountable with the included hardware. IEEE 802.11a/b/g/n/y compliant.

Product Features

  • Configurable for client/single-point host/multi-point host
  • Gigabit PoE - IEEE 802.3 af/at/bt or Passive 48Vdc
  • IEEE802.11a/n/ac compliant
  • Transmission Power Control
  • Up to 30dBm output power
  • Up to 400 Mbps of throughput
  • Secure transmission: WPA2 – AES or TKIP encryption
  • Distance adjustment for long range transmission
  • IP66 protection class

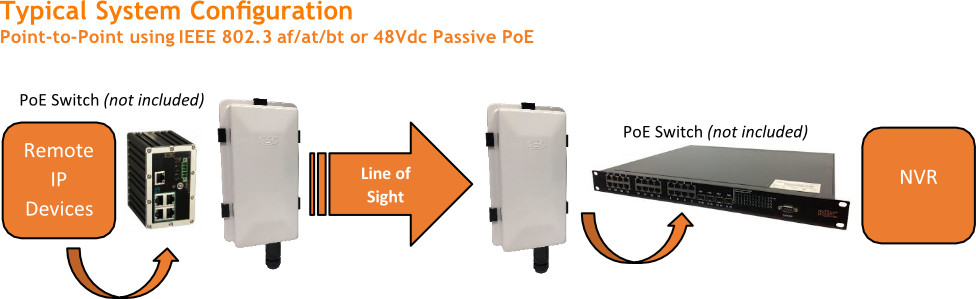

WES4 system drawing
