EECF4-DN1-R-XN-B

The KBC EECF4-DN1-R is an Ethernet over Coax (EoC) receiver with 4 coax ports with Power Over Coax (PoC) and 1*10/100/1000M Ethernet ports,1*1000Base-FX SFP port.

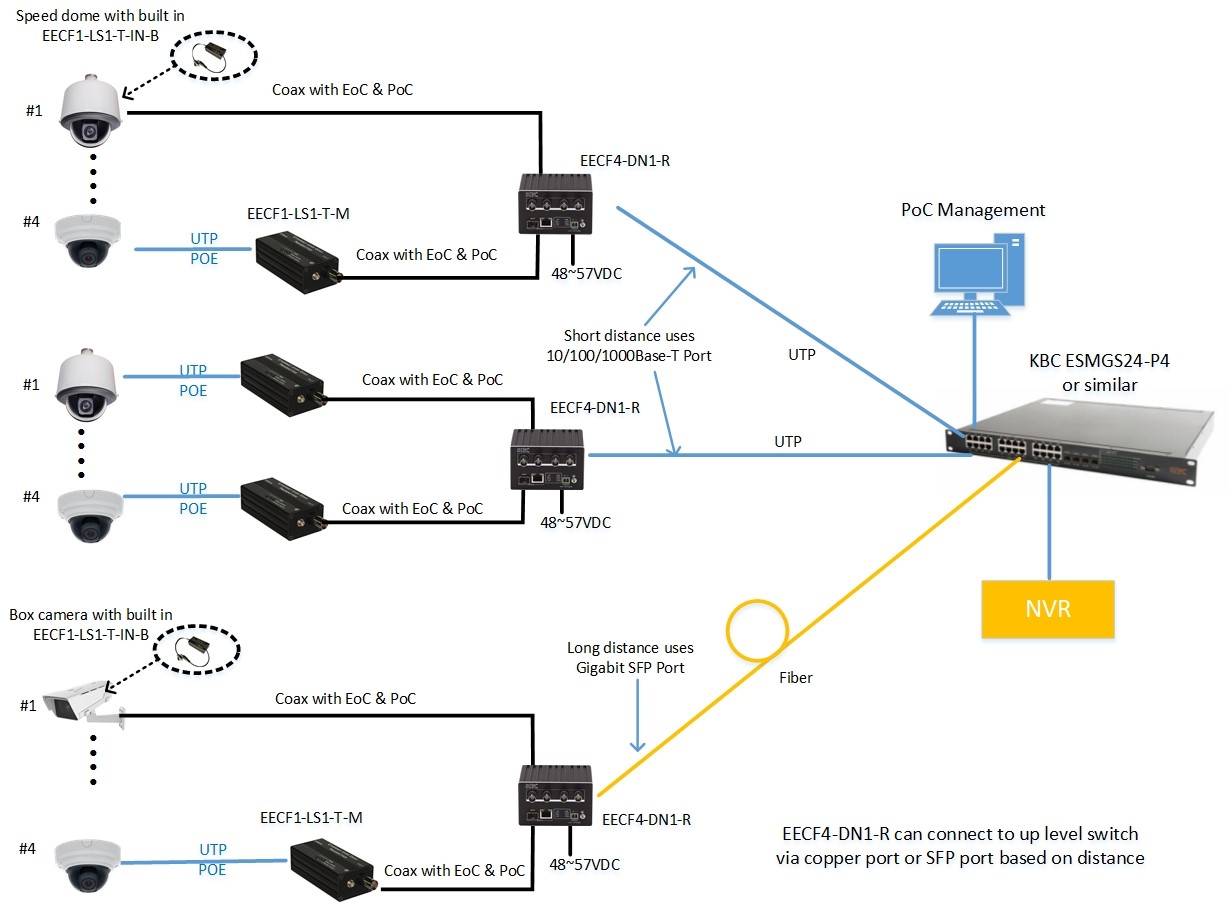

This switch provides connectivity up to 4 units PoC/PoE version EECF1-LS1-T-MN-B transmitter. Power is supplied to the transmitter through the coaxial cable. Varying data rates are supported depending on cable distance and quality. This product also provides PoC management which allows the operator to remotely switch power on or off to any of the coax channels.

Plug-and-play design ensures ease of installation with no electrical adjustment needed. LED indicators are provided to show the operational status of the unit clearly. This switch is available in DIN rail mount and wall mount.

  • 4 coax port with or without PoC
  • 1 *10/100/1000M Ethernet Port, 1*1000Base-FX-SFP port
  • PoC Management
  • Full switching capability
  • Coax data rate >50Mbps (300m)
  • Connect up to 4 units EECF1-LS1-T-IN-B , EECF1-LS1-T-MN-B or EECN1-LN1-T-MX-B or any combination
  • PoE+ is supported up to 300m based on coax quality and applied voltage to coax (48~57VDC)
  • Over current and short circuit protection
  • Unique PoC transmission protection design so that no power is output when the transmitter is not connected

EECF1-LN1-R-M-B
