The KBC EECF1-LN1-R-MN-B is a fully ruggedized Ethernet over coax one channel receiver. Its BNC port connects to coax and its 10/100M Base-T port connects to a switch.

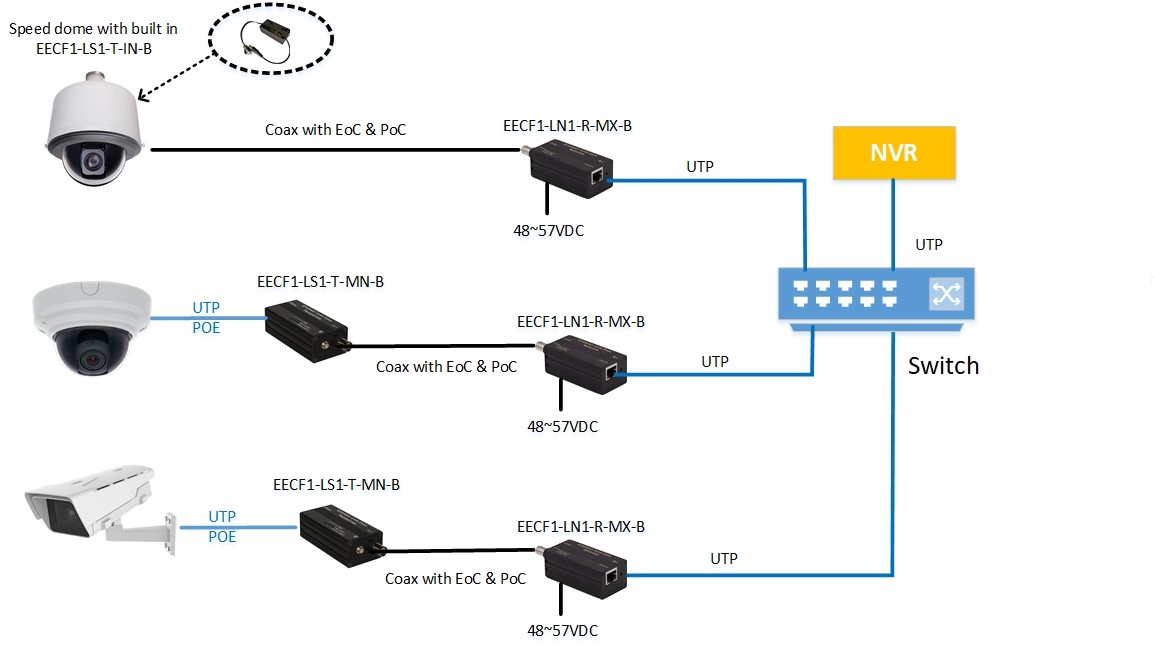

It provides connectivity to a single PoC/PoE device EECF1-LS1-T-MN-B transmitter. Power is supplied to the transmitter through the coaxial cable.

Varying data rates are supported depending on cable distance and quality. Plug-and-play design ensures ease of installation with no electrical adjustment needed. LED indicators are provided to show the operational status of the unit.

This one channel receiver is installed with a metal clip.

  • 1 coax ports with PoC
  • 1 *10/100 Base-T port
  • Connect to 1 unit EECF1-LS1-T-IN-B or 1 unit EECF1-LS1-T-MN-B
  • Coax data rate >50Mbps (300m)
  • PoE+ is supported up to 300m based on coax quality and applied voltage to coax (48~57VDC)
  • Over current and short circuit protection
  • Unique PoC transmission protection design so that no power is output when transmitter end is not connected
