The KBC ESMGS8-P2-L-B is a high performance, managed industrial gigabit Ethernet switch with 8* 10/100/1000M auto sensing copper ports and 2 gigabit SFP ports.Each copper port support PoE/PoE+ with up to 30W power available per port, however is powered from 9 to 36Vdc.

  • 9 ~ 36VDC Power supply input
  • 8* 10/100/1000Base-T Ethernet ports (PoE)
  • 2* 1000BASE-X SFP ports
  • EPRS (typical recovery time < 30ms over 250 units of connection)
  • Different redundancy protocols and standards STP / RSTP / MSTP
  • SNMPv1/v2c/v3&RMON & Port base/802.1Q VLAN network management
  • WEB, Telnet, SSH, Console (CLI)
  • Open and close port, binding MAC and port
  • 802.1x network access control
  • 802.1Q protocol, Isolate network flow
  • Radius Centralized password management
  • IGMP Snooping multicast function
  • IEEE802.3af/at standard.
  • Overload current protection and reverse polarity protection
  • LED displays connection status when using SFP
  • IP40 enclosure protection
  • Unique DIN mount design makes mount and removal easy

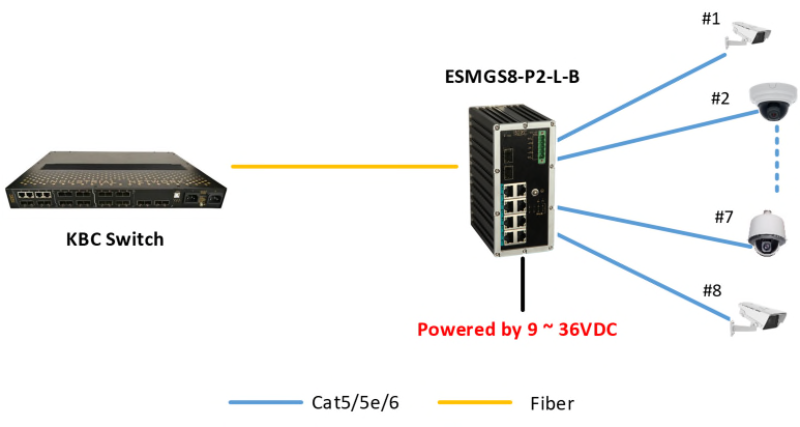

esmgs8 p2 l b drawing
