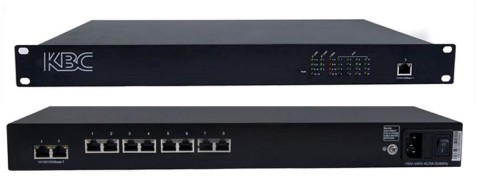

The KBC EERF8-GN3-R-RX-B series is an Ethernet over UTP (EoU) switch with 8 UTP ports supplying Power over Wire (PoW) and 3*10/100/1000M Ethernet ports. This switch provides connectivity up to 8 PoW/PoE (EERF1-LS1-T-MN-B) transmitters. Power is supplied to the transmitter through the UTP cable. Varying data rates are supported depending on cable distance and quality. This product also provides PoW management which allows the operator to remotely switch power on or off to any of the UTP channels. Plug-and-play design ensures ease of installation with no electrical adjustment needed. LED indicators are provided to show the operational status of the unit..

  • 8 UTP ports with or without PoW
  • 3 *10/100/1000M Ethernet ports (1 on the front and 2 at the rear)
  • PoW management
  • Full switching capability
  • Connect up to 16 transmitters, EERF1-LS1-T-MN-B or EERN1-LN1-T-MN-B or mixed.
  • UTP data rate >40Mbps (300m)
  • Based on cable quality ,cable pairs used (1,2,or 4 pairs) and voltage applied to cable (48~57VDC) from headend , PoE and PoE+ are supported by PoW up to 400m
  • Over current and short circuit protection
  • Unique PoW transmission protection design so that no power is output when transmitter end is not connected.
