MCLN1

The KBC MCLN1 series is an industrial 10/100M Ethernet media converter.

It supports transmission of one channel 10/100Base-T Ethernet over either one or two, multimode or single mode optical fibers with full duplex operation. Plug-and-play design makes installation straightforward, with no electrical or optical adjustment needed. LED indicators are provided to show the operational status of the unit.

Rugged design in both enclosure and electrical protection makes it suit for application in harsh environment. The series is available in wall, DIN, and 2U passive rack FR2-12, or card version in 2U chassis FR2-16. The series is available in wall mount, DIN, and 2U passive rack FR2-12, or card version in 2U chassis FR2-16.

  • 10/100M auto sensing
  • Compatible with SFP version of MCLN1 series, PoE version of MCLS1 series, and two channel 10/100M media converter MCLN2 series
  • SM(Single Mode) and MM(Multi Mode)
  • 1 fiber or 2 fibers
  • SM&MM: 1310nm/1550m for 1 fiber, 1310nm for 2 fibers
  • Typical SM and MM transmission distance are 20km and 2 km respectively, longer distance is available
  • IP40 enclosure
  • DIN, Wall Mount or 2U Card version
  • FR2-12 passive Rack with 12 slots or Chassis card in FR2-16 with 16 slots

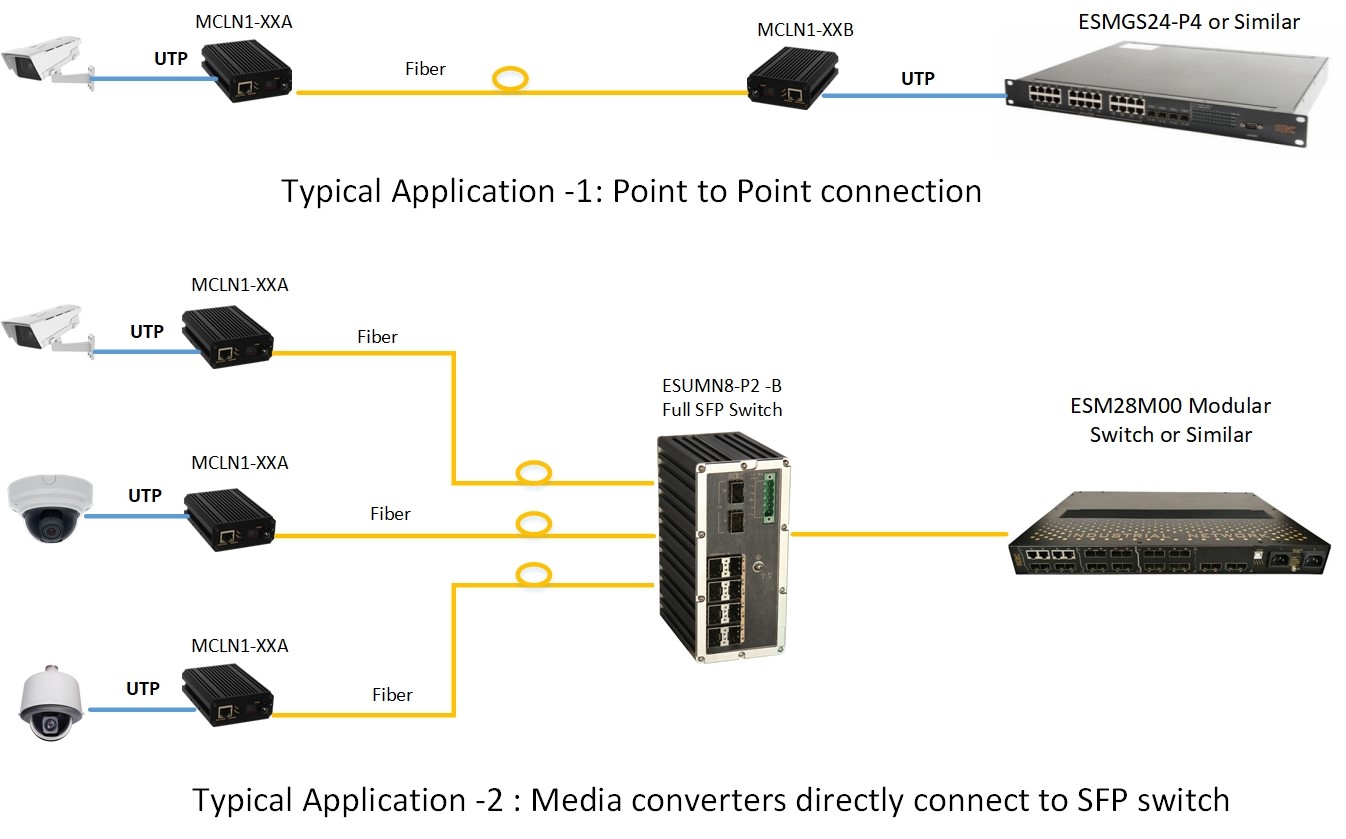

mcln1
