The KBC EECF1-LS1-T-IN-B is a fully ruggedized Ethernet over coax one channel transmitter.

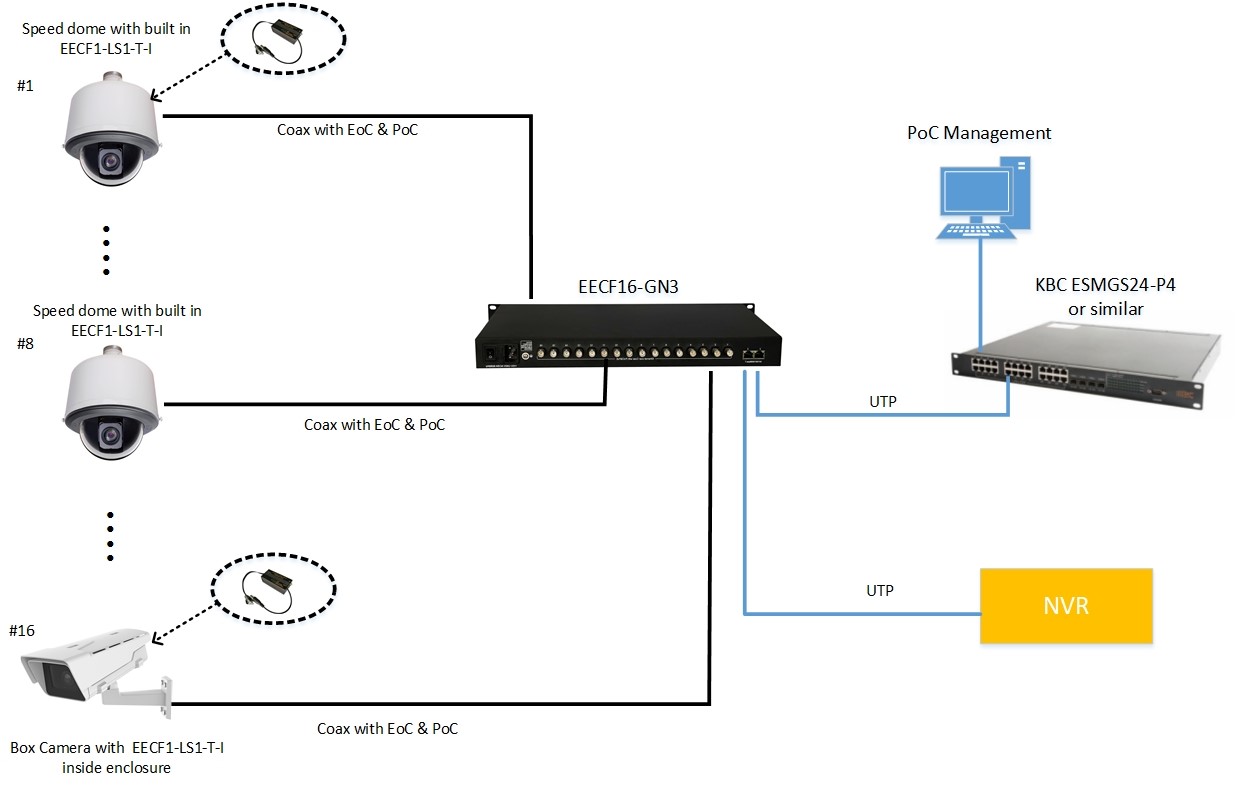

This transmitter provides connectivity for one 10/100Mbps IEEE standard electrical copper port over coax cable.  Power is supplied from one of the headend Receivers, EECF16-G3-R-RX-B, EECF8-G3-R-RX-B, EECF4-DN1-R-WN-B or EECF1-LS1-R-MN-B.  Power is supplied to the transmitter through the oax cable by power over oax (PoC).

Varying data rates are supported depending on cable distance and quality. Plug-and-play design ensures ease of installation with no electrical adjustment needed. LED indicators are provided to show the operational status of the unit.

The Ethernet port of the transmitter includes flying cables.  Its size is suited for fitting inside camera housings and where space is minimal.

  • 1 coax ports with PoC
  • 1 *10/100 Base-T port
  • Connect to EECF16-G3-R-RX-B, EECF8-G3-R-RX-B, EECF4-DN1-R-WN-B or EECF1-LS1-R-MN-B.
  • Coax data rate >50Mbps (300m)
  • PoE+ is supported up to 300m based on coax quality and applied voltage to coax (48~57VDC)
  • Over current and short circuit protection
  • Unique PoC transmission protection design so that no power is output when transmitter end is not connected
