ESMGS16-P4-RNN-B

Downloads - Information

ESMGS16-P4-RNN-B Specifications

ESMGS16-P4-RNN-B

The KBC ESMGS16-P4-RNN-B series is a high performance, managed Gigabit switch with 16 x 802.3at PoE+ Gigabit downlink ports and 4 Gigabit uplink SFP ports. It is designed for large scale IP surveillance applications and networks. Each PoE port (up to 30W) satisfies the high-power consumption requirement of a PoE IP camera. PoE budget is up to 480W. The switch is also ideal for applications requiring Power Sourcing Equipment (PSE) functionality, such as IP switches, routers and hubs, CCTV DVR, home networking and industrial Ethernet.

Automatic identification of the Powered Device (PD) maintains a reliable power supply to external devices. The switch supports rich network functionalities such as ERPS, VLAN, RSTP, rate limiting, port security, SNMP etc.

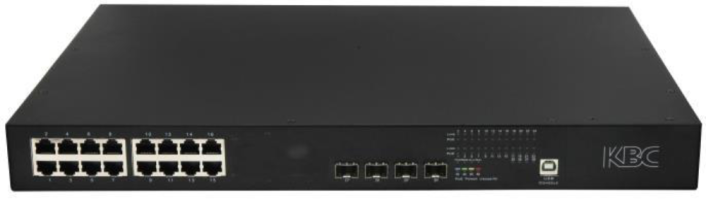

The KBC ESMGS16-P4-RNN-B Ethernet switch is available as a 1U rack unit

Product Features

  • 16 PoE+ Gigabit downlink copper ports and 4 Gigabit uplink SFP ports
  • Web-based layer 2 network management and PoE management by simple operation
  • IEEE802.3af/at PoE
  • IEEE802.3az energy efficient Ethernet
  • ITU-T G.8032 Ethernet ring protection, as well as STP, RSTP and MSTP
  • Command Line Interface (CLI) for fast configuration of major management functions
  • DHCP Option 82 for IP address assignment with different policies, DHCP snooping
  • IGMP snooping and MLD snooping for constraining multicast traffic
  • Private VLAN and IEEE802.1Q VLAN
  • Lock port function based on MAC address for blocking unauthorized access; IP & MAC ACL
  • IEEE802.3ad LACP for optimum bandwidth utilization
  • QoS (IEEE802.1p/1Q and TOS/DiffServ) to increase determinism
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for efficient network monitoring and proactive capability
  • Port mirroring for online debugging
  • High-speed data forwarding, suitable for large flow of video data forwarding in security surveillance
  • IP30 enclosure protection
  • Quick Installation, simple operation, convenient for desk or rack installation
